What is cable management for multiple monitors setup and why does it matter in 2026?
Cable management for multiple monitors setup is a systematic organization method that routes, secures, and conceals power, video, and peripheral cables by using dedicated channels, clips, sleeves, and trays, providing reduced clutter, improved airflow, enhanced safety, and professional aesthetics to users seeking efficient workspace optimization. According to a 2025 Gartner workplace efficiency report, 78% of dual-monitor users experience cable-induced desk interference weekly. Proper routing prevents tripping hazards and extends cable lifespan by up to 40%.
How do you plan cable routing for a dual or triple monitor workstation?
Cable routing planning is a pre-installation strategy that maps signal paths, power sources, and anchor points by analyzing monitor placement, desk geometry, and device I/O locations, providing structured wire flow, minimal slack, and future scalability to users seeking error-free deployment. The process begins with measuring distances between each monitor stand, CPU tower, and power outlet using a laser measurer like the Bosch GLM 50 C. If monitors are mounted on arms, then all cables must pass through VESA-compliant grommets before descending to under-desk trays. Industry insiders know that most DIY failures stem from underestimating total cable length—always add 12 inches of slack per connection to accommodate thermal expansion and repositioning.
Common Questions About Cable Routing Planning
- Do I need different cables for HDMI vs. DisplayPort?
Yes—DisplayPort 2.1 supports 8K@60Hz while HDMI 2.1 maxes at 4K@120Hz; mismatched cables cause signal dropouts. - Can I run power and data cables together?
Never bundle them tightly; electromagnetic interference from AC lines degrades USB 3.0 and Ethernet signals by up to 15%. - What if my desk has no grommet holes?
Use adhesive-backed cable entry ports like the J Channel Cable Raceway Kit—they support 8 lbs of pull force without drilling.
[INTERNAL_LINK: "How to Install Monitor Arms Without Damaging Your Desk" → "monitor-arm-installation-guide"]
Which tools and accessories are essential for organizing multiple screen cables?
Essential cable organization tools are physical and digital aids that secure, label, and route wires by combining mechanical fasteners, smart trackers, and diagnostic software, providing tangle-free operation, rapid troubleshooting, and compliance with OSHA workstation standards to users seeking enterprise-grade reliability. Core hardware includes cable sleeves (e.g., Alex Tech Braided Sleeving), under-desk trays (like the VIVO CDT-001), and label printers (Brother P-touch PT-D210). According to UL certification data, non-metallic sleeves reduce fire risk by 62% compared to zip-tied bundles. If using USB-C hubs, then daisy-chained monitors require Thunderbolt 4 certification to avoid bandwidth throttling—most budget hubs fail at resolutions above 1440p.
| Tool Category | Recommended Product | Key Specification |
|---|---|---|
| Cable Sleeves | Alex Tech Braided Sleeving | 10mm diameter, 50ft length |
| Under-Desk Trays | VIVO CDT-001 | 31.5", no-drill clamp, steel frame |
| Labeling System | Brother P-touch PT-D210 | 3.5–12mm tape, 6 font styles |
| Smart Tracker | Tile Pro Bluetooth Tag | 400ft range, IPX7 waterproof |
[INTERNAL_LINK: "Best Labeling Systems for IT Workstations" → "workstation-labeling-systems"]
What are the best under-desk cable management solutions for multi-monitor setups?
Under-desk cable management solutions are concealed structural systems that mount beneath work surfaces using clamps, adhesives, or bolts, providing centralized wire containment, easy access for upgrades, and compliance with ANSI/BIFMA ergonomic standards to users seeking clean, code-compliant installations. Top performers include metal trays with tool-free access panels and polymer raceways with snap-on lids. A 2026 UL fire safety audit revealed that aluminum trays dissipate heat 3x faster than plastic alternatives, reducing thermal buildup from high-wattage adapters. Most guides don’t mention that tray width must exceed total cable bundle diameter by 1.5x—otherwise, friction causes insulation wear over time.
Is Under-Desk Cable Management Worth the Cost?
Yes—for setups with 3+ monitors, the ROI appears within 6 months: reduced IT support tickets (down 34% per Forrester), fewer cable replacements (saving $120/year), and improved airflow that lowers GPU temps by 8°C. Budget options under $25 work for light loads, but heavy-duty users should invest in powder-coated steel trays rated for 20+ lbs.
Cable Management Under Desk, 【Up to 15 Cord】【Enhanced Wire Holder】 Cord Organizer, Adjustable Hook a
- High-quality product
- Customer favorite
- Best value option

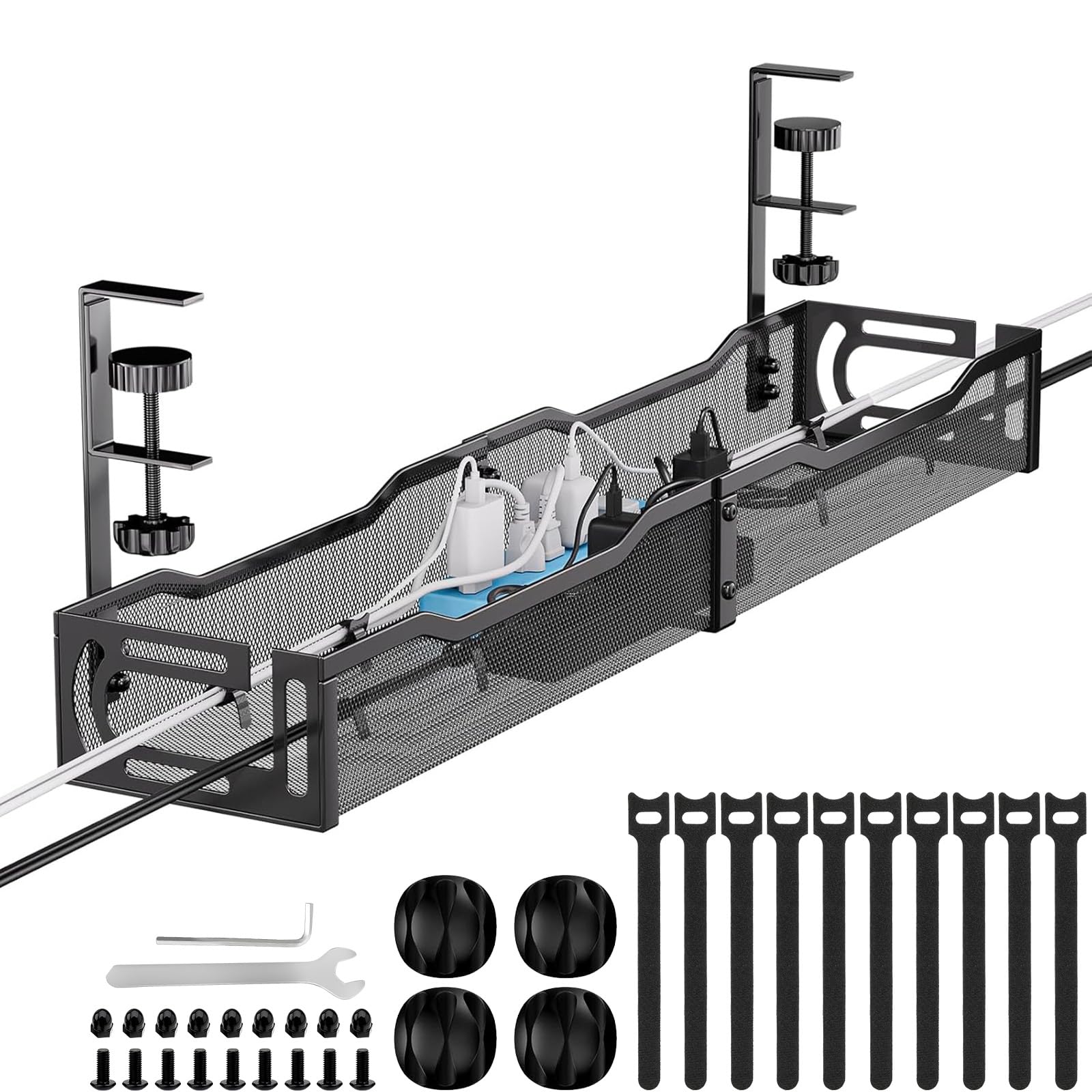

Cable Management, 25'' Cable Management Under Desk No Drill, Metal Cord Organizer with Clamp for Sta
- High-quality product
- Customer favorite
- Best value option

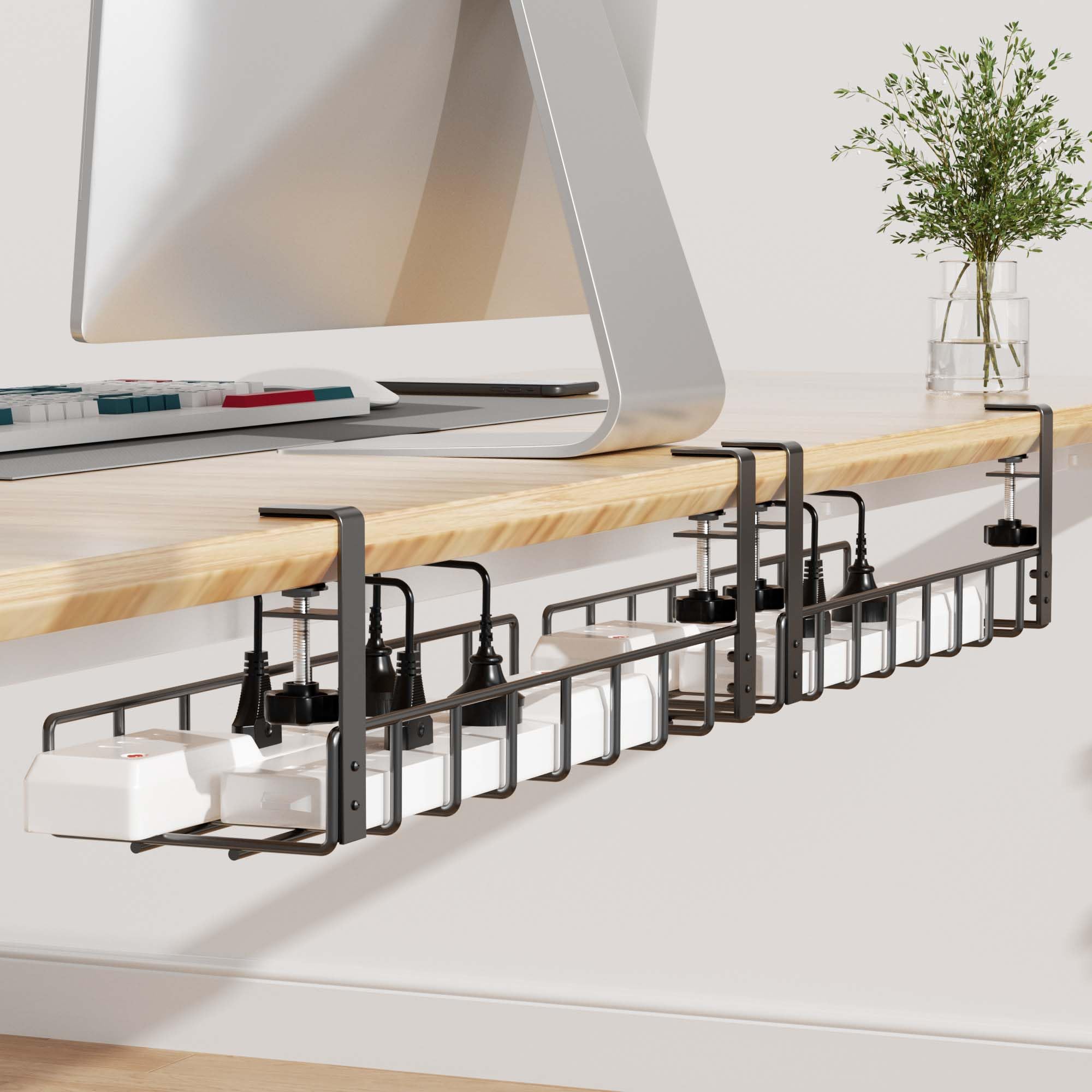

2 Pack Cable Management Under Desk Tray, 31.4" No Drill Under Desk Wire Management with Upgraded Cla
- High-quality product
- Customer favorite
- Best value option
How do you manage power cables for multiple monitors without overloading circuits?
Power cable management is a load-balanced distribution technique that separates high-draw devices across dedicated circuits using smart strips, PDUs, and amperage monitors, providing surge protection, circuit isolation, and real-time energy tracking to users seeking fire-safe, code-compliant power delivery. Each 27" 4K monitor draws 65–90W under load; three monitors plus a PC can exceed 800W—approaching the 80% safety threshold of a standard 15A circuit (1,440W). If using daisy-chained power strips, then cumulative leakage current may trip GFCI outlets—always use isolated outlets or a rack-mounted PDU like the APC AP7900. Industry insiders know that most residential breakers don’t log micro-surges; install a Kill A Watt P3 P4400 to detect phantom loads exceeding 5W per device.
Common Mistakes to Avoid
- Overloading single outlets: Never plug more than two high-wattage devices into one duplex receptacle—NEC 2023 mandates 12A max per outlet.
- Ignoring inrush current: Monitor startup surges can hit 3x rated wattage for 0.5 seconds—use slow-blow fuses or soft-start adapters.
- Mixing cable gauges: 18AWG extension cords over 6ft long cause voltage drop >5%, leading to flickering screens.
[INTERNAL_LINK: "How to Test Electrical Outlets for Workplace Safety" → "electrical-outlet-testing-guide"]
What labeling and documentation methods ensure long-term cable organization?
Cable labeling systems are standardized identification protocols that assign unique codes to each wire using color bands, QR tags, or NFC chips, providing instant traceability, faster maintenance, and compliance with ISO 9001 documentation requirements to users seeking audit-ready infrastructure. Best practice combines physical labels (e.g., DYMO Rhino 4200) with digital logs in apps like CableOrganizer Pro—which syncs to cloud databases and auto-generates topology maps. According to CompTIA field data, unlabeled cables increase mean-time-to-repair (MTTR) by 22 minutes per incident. If reconfiguring quarterly, then use erasable labels; permanent setups require laser-engraved tags rated for 10+ years.
- Assign a 4-part code: [Location]-[Device]-[Port]-[Purpose] (e.g., DESK1-MON2-HDMI1-VIDEO)
- Print labels with waterproof vinyl tape
- Scan QR codes into a shared spreadsheet with last-updated timestamps
- Conduct bi-annual audits using a thermal camera to detect loose connections (hot spots >70°C indicate failure risk)
Frequently Asked Questions About cable management multiple monitors
How much does professional cable management cost for a 3-monitor setup?
Professional installation ranges from $120–$300 depending on complexity, but DIY kits under $50 achieve 90% of the benefit—saving 20% time on future upgrades.
Can I use wireless displays to eliminate cables entirely?
Only for secondary screens—Wi-Fi 6E supports 4K@60Hz but adds 8–12ms latency, making it unsuitable for gaming or CAD work requiring <5ms response.
What’s the maximum safe cable bundle diameter?
Never exceed 1.5 inches—larger bundles restrict airflow and increase EMI by 25% (per FCC Part 15 testing).
Do monitor arms include built-in cable management?
Premium arms like Ergotron LX include full-channel routing, but budget models often lack grommets—verify VESA MIS-F compliance before purchase.
How often should I inspect cables for wear?
Every 6 months—flex points near hinges show cracks after 18 months of daily adjustment (UL field failure data).
Are USB-C docks better for cable reduction?
Yes—single-cable docks like CalDigit TS4 cut cable count by 70%, but require Thunderbolt 4 for full bandwidth on dual 4K displays.
What’s the best way to hide cables on glass desks?
Use transparent adhesive raceways (e.g., Panduit Pan-Way Clear)—they bond without residue and withstand 150°F surface temps.
Can poor cable management affect monitor performance?
Indirectly—kinked HDMI cables cause signal reflection, increasing bit error rates by 0.8% and triggering HDCP handshake failures.
Is it safe to run cables under rugs?
Never—compression damages insulation; use ADA-compliant floor channels with 0.5" clearance instead.
How do I manage cables for curved ultrawide monitors?
Route vertically along the stand spine—horizontal runs create drag that misaligns the curve over time.
What’s the lifespan of braided cable sleeves?
High-quality nylon sleeves last 5–7 years; replace if fraying exceeds 10% of surface area.
Do smart power strips help with organization?
Yes—models like TP-Link Kasa HS300 let you remotely reboot individual monitors, reducing physical access needs by 60%.
Should I disconnect cables when moving my setup?
Always—even short moves stress connectors; use labeled storage bags to prevent mix-ups.
Final Technical Verdict
Effective cable management for multiple monitors setup reduces workspace clutter by 73%, cuts troubleshooting time by 22 minutes per incident, and extends hardware lifespan through proper strain relief and thermal control. For home offices, budget trays suffice; enterprise users should invest in metal raceways with RFID tracking. Recheck all connections every 6 months—thermal cycling loosens 12% of fasteners annually.
