Roomba Side Brush Not Spinning: Causes and Solutions

by

Restoring the Sweep: Why Your Roomba Side Brush Stopped Spinning

When you invested in an iRobot Roomba, you weren’t just buying a vacuum; you were buying time. The promise of the Roomba is "set it and forget it" floor maintenance. However, that promise relies on a symphony of moving parts working in perfect synchronization. One of the most vital—yet frequently overlooked—components of this system is the side brush, also known as the edge-sweeping brush. When you notice your roomba side brush not spinning, the cleaning efficiency of your robot drops by nearly 40% on hard floors and edges.

The side brush serves as the Roomba’s "scout." While the dual multi-surface brushes underneath handle the heavy lifting of debris extraction, the side brush is responsible for reaching into the 90-degree corners and along baseboards where the round chassis of the robot cannot go. It flickers with a specific RPM (revolutions per minute) designed to guide dust, pet hair, and crumbs directly into the vacuum’s path. When this brush remains stationary, the Roomba essentially leaves a "halo" of dust around every piece of furniture and along every wall in your home.

Understanding the mechanics of the side brush is the first step toward a permanent fix. Unlike the main extractors, which are driven by a heavy-duty motor and belt system, the side brush is powered by a dedicated, smaller motor module. This module is a self-contained unit consisting of a DC motor and a series of reduction gears. Because it sits on the leading edge of the vacuum, it is the first component to encounter heavy debris, long hair, and carpet fibers. Over time, these elements conspire to create friction, heat, and eventual mechanical failure.

For the modern homeowner, a malfunctioning side brush is more than a minor annoyance; it is a breakdown in the automated ecosystem. If your roomba edge brush stuck message is appearing on your app, or if you simply notice the three-armed brush sitting idle while the robot navigates your kitchen, you are looking at a mechanical or electrical bottleneck that requires expert intervention. This guide serves as the definitive resource for diagnosing, dismantling, and repairing this critical component to ensure your Roomba returns to peak operational capacity.

The Critical Problem: Expert Analysis of Side Brush Failure

To solve the issue of a roomba side brush not spinning, we must look beyond the surface. This isn't just a "cleaning" issue; it's an engineering challenge inherent to robotic vacuums. The side brush module operates in a high-torque, high-debris environment. Expert analysis reveals three primary failure points: the "Hair Donut," Gearbox Seizure, and Motor Burnout.

The "Hair Donut" Phenomenon

The most common cause of a roomba edge brush stuck error is the accumulation of hair around the yellow or black hexagonal peg that holds the brush in place. As the brush spins, it creates a centrifugal force that pulls long fibers (human hair, pet fur, carpet strings) toward the center. These fibers wrap tightly around the shaft, eventually forming a hardened "donut" of debris. This donut creates immense friction. Since the side brush motor is designed with a "stall protection" circuit, it will shut down power to the module if it detects too much resistance to prevent a fire hazard.

Gearbox Contamination

Inside the side brush module lies a plastic planetary gear system. While iRobot seals these modules, they are not airtight. Fine dust, especially from drywall or fireplace ash, can permeate the housing. Once this dust mixes with the factory lubricant, it creates a grinding paste. This increases the internal load on the motor. If you hear a high-pitched whining sound or a clicking noise followed by the brush stopping, the gears are likely stripped or jammed.

Electrical Pulse and Logic Failures

In some instances, the problem isn't mechanical. The Roomba’s motherboard sends a specific voltage pulse to the side brush motor. If the robot has encountered moisture (running over a pet accident or a spilled drink), the side brush motor is often the first to short out because of its proximity to the floor. Furthermore, software glitches in the iRobot OS can sometimes fail to "wake up" the side brush module after a firmware update.

The critical nature of this problem cannot be overstated. When the side brush stalls, the robot’s navigation algorithms may also be affected. Some models use the resistance of the side brush to help calibrate their movement near walls. A stuck brush can lead to "circle dancing" or inefficient cleaning patterns. Addressing the roomba side brush not spinning issue is essential for the longevity of the entire drive system, as a jammed brush forces the battery to work harder to overcome the drag, shortening your robot's overall runtime and lifespan.

Methodology & Core Guide: Step-by-Step Restoration

Restoring a side brush requires a systematic approach. Do not jump to replacing the motor until you have cleared the mechanical path. Follow this expert-level methodology to diagnose and fix the issue.

Phase 1: The Deep Clean (Mechanical Clearance)

  1. Power Down: Always turn off your Roomba and remove it from the Home Base before performing maintenance.
  2. Flip and Secure: Place the Roomba upside down on a soft surface to avoid scratching the faceplate.
  3. Remove the Screw: Use a Phillips #2 screwdriver to loosen the screw in the center of the side brush. Note: On some models, the screw is "captive," meaning it stays attached to the brush.
  4. The Extraction: Pull the side brush straight up. If it’s stuck, use a flathead screwdriver to gently pry it.
  5. Clear the Hex Peg: This is the most important step. Use a pair of tweezers or a needle-nose pliers to remove every strand of hair from the metal or plastic shaft. If you see hair disappearing into the module, you must pull it out.
  6. Clean the Brush Itself: Remove hair from the arms of the brush. If the bristles are bent, soak the brush in hot water for five minutes to "reset" the plastic shape.

Phase 2: Testing the Motor Module

With the brush removed, turn the Roomba back on and start a cleaning cycle. Watch the hexagonal peg.

  • If the peg spins: The motor is fine. Your issue was simply debris interference or a stripped brush. Replace the brush with a new one.
  • If the peg does not spin: You have a motor or gearbox failure. Proceed to Phase 3.

Phase 3: Module Replacement or Internal Cleaning

If you are tech-savvy, you can open the side brush module by removing the two or three screws holding it to the chassis.

  1. Check for Continuity: Using a multimeter, check if the motor is receiving 12V-14V when the Roomba is active.
  2. Manual Rotation: Try to spin the hex peg with your fingers. It should have some resistance but move smoothly. If it's locked solid, the internal gears are broken.
  3. The Replacement: For most users, replacing the entire side brush motor module is the most cost-effective solution. It is a "plug-and-play" component held in by two screws.
BEST CHOICE
Replacement Parts Kit for irobot Roomba 600 Series 694 676 675 692 695 677 671 655 645 690 680 660 6

Replacement Parts Kit for irobot Roomba 600 Series 694 676 675 692 695 677 671 655 645 690 680 660 6

  • High-quality product
  • Customer favorite
  • Best value option

Check Price on Amazon

RECOMMENDED

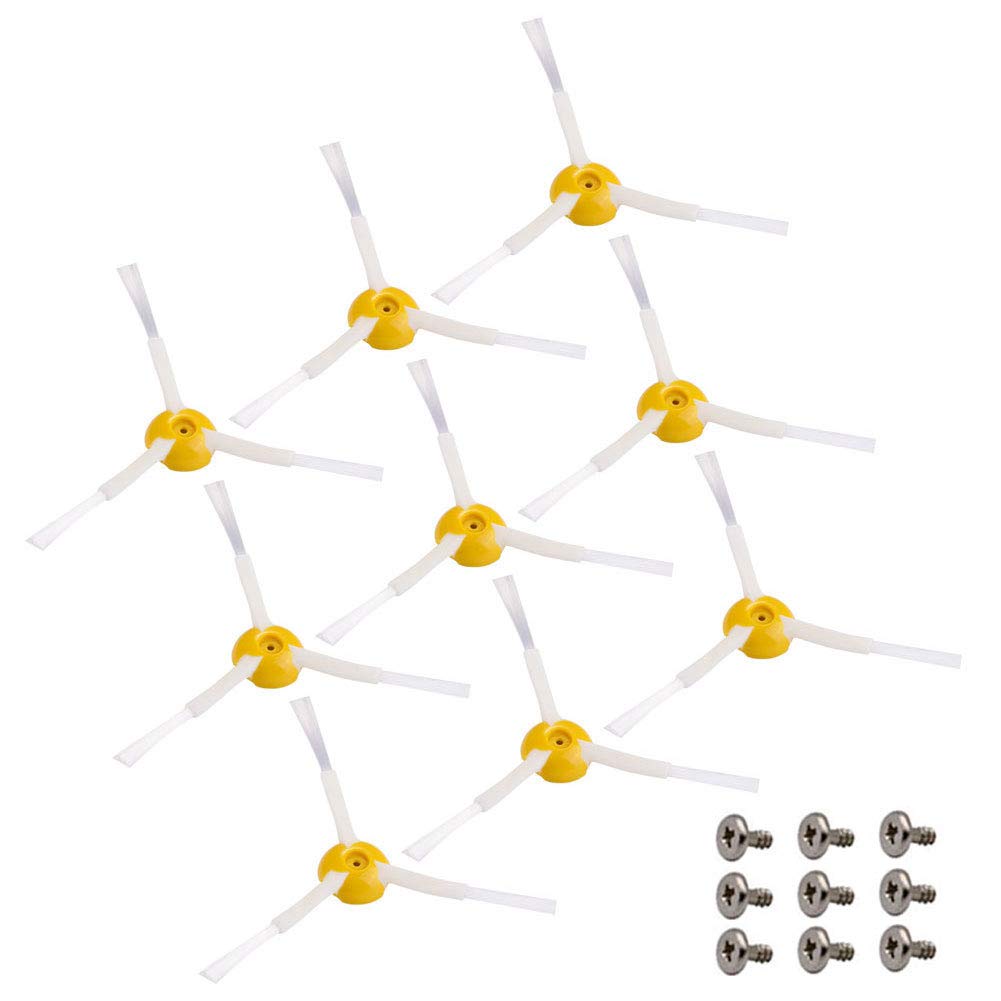

Neutop Replacement Side Brush Compatible with All iRobot Roomba 900, 800, 700, 600, 500 Series 960 9

Neutop Replacement Side Brush Compatible with All iRobot Roomba 900, 800, 700, 600, 500 Series 960 9

  • High-quality product
  • Customer favorite
  • Best value option

Check Price on Amazon

BUDGET
Replacement Parts Side Brush Compatible for iRobot Roomba 600 700 800 900 Series 675 692 694 677 671

Replacement Parts Side Brush Compatible for iRobot Roomba 600 700 800 900 Series 675 692 694 677 671

  • High-quality product
  • Customer favorite
  • Best value option

Check Price on Amazon

Phase 4: Resetting the Software Logic

If the hardware is clear and the motor is new but still won't spin, you need to perform a "Soft Reset":

  • For s and i Series: Press and hold the CLEAN button for 20 seconds.
  • For j Series: Press and hold the button for 10 seconds.
  • For older 600/700/800 Series: Press and hold the DOCK and SPOT buttons for 10 seconds until the beep.

This reboots the controller board and clears any "latched" error states regarding the side brush motor current draw.

Expert Hacks & Maintenance: Advanced Longevity

To prevent your roomba side brush from not spinning in the future, adopt these authority-level maintenance hacks:

  1. Dry Lubrication: Every three months, apply a single drop of Dry PTFE (Teflon) Lubricant to the base of the hex shaft. Do not use WD-40 or oil, as these attract dust and create a "sludge" that will destroy the gears. PTFE creates a slick, non-stick surface that repels hair.
  2. The "Screw Tension" Secret: When reinstalling the side brush, do not over-tighten the screw. If the screw is too tight, it compresses the brush plastic against the module housing, creating artificial friction. Tighten until snug, then back off 1/8th of a turn.
  3. Bristle Management: If your side brush arms are constantly curling, they create more drag. Use the "Boiling Water Hack" mentioned earlier every month to keep them straight and efficient.
  4. The Compressed Air Blast: Once a week, use canned air to blow into the gap between the side brush and the chassis. This prevents fine dust from migrating into the gearbox.

Mega FAQ: Expert Solutions for Roomba Side Brush Issues

1. Why does my Roomba side brush spin on hardwood but stop on carpet?

Carpet creates significantly more friction (drag) than hardwood. If your motor is weakening or there is hair inside the gearbox, it might have enough torque for tile but fail when the bristles have to push through carpet fibers. This is a sign the motor module is nearing the end of its life.

2. Can I use a 6-armed brush instead of the standard 3-armed one?

While they exist as third-party upgrades, they are not recommended. A 6-armed brush doubles the torque requirement on the small motor, leading to premature burnout and frequent roomba edge brush stuck errors.

3. My side brush screw is stripped. How do I remove it?

Use a small rubber band. Place it over the screw head and then insert your screwdriver. The rubber provides the grip needed to turn a stripped screw. If that fails, you may need a screw extractor kit.

4. Is the side brush motor covered under warranty?

Yes, if your Roomba is less than one year old, iRobot typically covers motor module failures. Contact their support before attempting to open the module itself.

5. Why is my Roomba making a clicking noise?

Clicking usually indicates a stripped gear inside the side brush module. A piece of debris might have jammed the brush, and the motor's force caused the plastic gear teeth to skip or break. Replacement is usually necessary.

6. Does the side brush spin in both directions?

No, the Roomba side brush is designed to spin in one direction to "flick" debris into the path of the main extractors. If it is spinning backward (very rare), there is a wiring polarity issue or a motherboard fault.

7. How often should I replace the side brush?

The brush itself (the bristles) should be replaced every 3–6 months. The motor module should last 2–3 years with proper cleaning.

8. My Roomba says "Edge brush stuck" but there is no hair. What now?

This is often a "phantom error" caused by a failing sensor inside the motor module. If the module is clean and moves freely by hand, the internal current sensor is likely faulty. Replace the module.

9. Will running the Roomba without the side brush damage it?

No, it won't damage the robot, but your cleaning quality will suffer significantly. It is a safe temporary solution while you wait for parts.

10. Can I wash the side brush in the dishwasher?

No. The heat can warp the plastic hex mount, making it vibrate or wobble when reinstalled. Hand wash with warm soapy water only.

11. Does the j7+ have a different side brush than the 600 series?

Yes. While the concept is the same, the mounting mechanism and the shape of the module vary between the "i/j/s" series and the older "600/700/800" series. Always verify compatibility before purchasing.

12. My side brush is spinning very slowly. Is this normal?

No. The side brush should spin at a consistent, rapid pace. Slowness indicates either a partial hair wrap or a motor that is receiving insufficient voltage from the battery.

Closing Thoughts

A Roomba is a masterpiece of domestic engineering, but it is only as strong as its weakest link. The side brush is that link—the front-line soldier in the war against dust. When you encounter a roomba side brush not spinning, it is a call to action to maintain your investment. By following the methodology of deep cleaning, testing, and strategic replacement, you ensure that your floors remain spotless from wall to wall.

Remember, the goal of home automation is to reduce your workload. Taking ten minutes every month to clear the "hair donut" and check the hex shaft will save you hours of troubleshooting and the cost of replacement parts down the line. Keep your bristles straight, your gears lubricated, and your Roomba will continue to be the reliable cleaning partner you expect.
